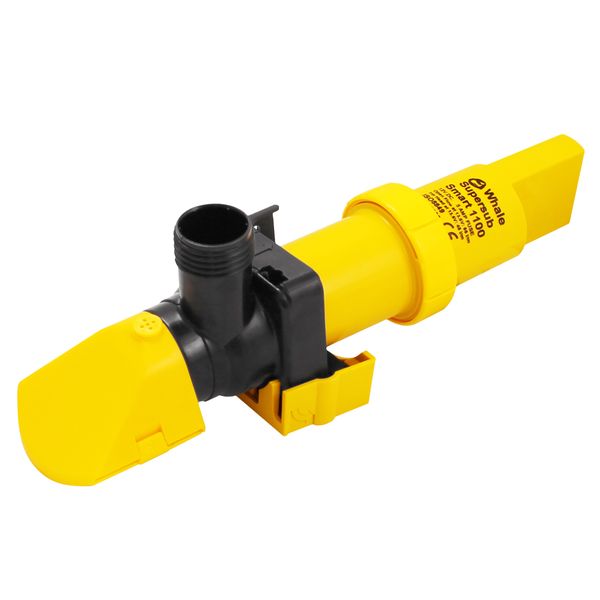

Bilge Pump Automatic 24 V Manufactured by Whale
Low profile automatic bilge pumps sense bilge water level and switch on and off automatically.
Fit deep down in confined bilge areas, under engines or cockpit floors.
Features and Benefits
- Fits deep in the bilge where other pumps can't
- No separate bilge switch required
- Automatically controlled patented electric field sensor detects water level
- Waterproof electronics- protected against water ingress
- Quick and easy installation - long wires, strainer and outlet rotate to suit your bilge area
- Unaffected by wave motion
- Environmentally friendly - mercury free
- Includes manual override facility
- Solid state switching - no moving parts
- Drains to down 9mm (1/3")
Approvals and Standards
- Conforms to ISO 8849 and ISO 15083
- Ignition protected per ABYC and USCG standards
- NMMA type accepted
- CE certified
| Automatic Bilge Pumps | Yes |
| Maximum Recommended Head | 3 Meters (9.8 Feet) |
| Flow Rate 1m | 2820 LPH (750 US GPH) / 47 LPM (12 US GPM) |
| Inlet Outlet Port Size | 25mm or 28mm (1” or 1-1/8”) |
| Flow Rate at Zero Head | 3960 LPH (1050 US GPH) / 66 LPM (17 US GPM) |
| Maximum Pump Head | 2.3 to 4.27 Metres |
| Country of Origin | United Kingdom |
| Brand | Whale |
| Model | SS1224, SS1224B |
| Voltage | 24V DC |
| Amps | 2.2A |
| Fuse | 5A |
| Approvals | ISO8849 marine (bilge pump) standards, ISO15083 marine (bilge pumping systems) standards, Ignition Protected AYBC & USCG standards, CE Certified 89/336/EEC EMC compliant |
| Height | 54mm (2-1/8") |
| Width | 240mm (9-1/2") |
| Depth | 75mm (2-15/16") |
| Length | Cable: 1 Meter (3.2 feet) |
| Warranty | 1 Year |
