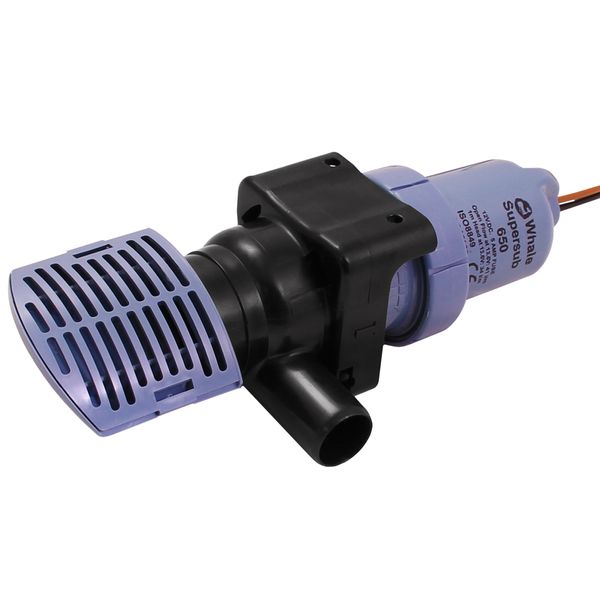

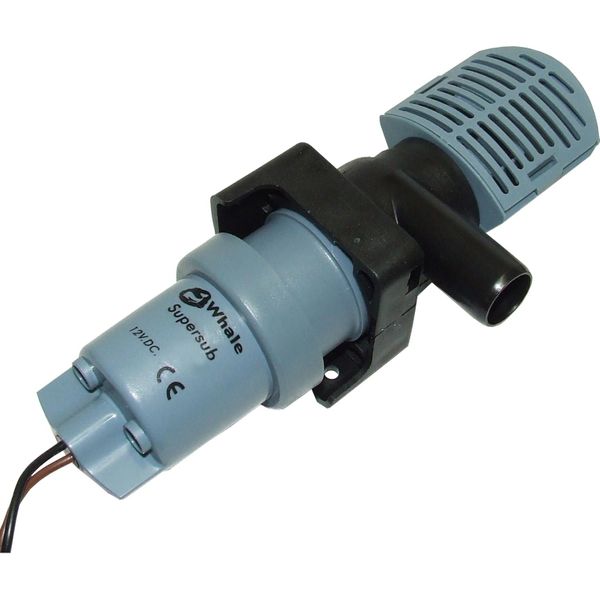

Narrow low profile standard submersible bilge pumps now with higher capacity models.
Designed for use with separate bilge switch.
Low profile electric bilge pump designed for narrow bilge spaces.
Supersubs fit deep down in small / awkward bilge spaces where other pumps won't.
Features and Benefits
- Low narrow design for confined bilge spaces
- Easy installation - outlet and pump body rotate to suit your installation
- High performance
- Efficient operation - very low power consumption
- Easy to clean - snap fit assembly
- Low profile strainer - leaves the bilge almost dry
- Drains to down 9mm (1/3")
- Tip: It is important to ensure that a vented anti-syphon loop is incorporated in the system.
Approvals and Standards
- Conforms to ISO 8849 and ISO 15083
- Ignition protected per ABYC and USCG standards.
- EMC compliant. NMMA type accepted
- CE certified
- Accessories (available separately):
- Electric bilge switches W-BE9003
- W-BE9006 Non return valve W-LV1219
| Flow Rate 1m | 1514 LPH (400 US GPH) / 25 LPM (6 US GPM) |
| Automatic Bilge Pumps | No |
| Country of Origin | United Kingdom |
| Flow Rate at 2 Meter Head | 925 LPH (244 US GPH) / 15.4 LPM (4 US GPM) |
| Flow Rate at Zero Head | 1892 LPH (500 US GPH) / 31.6 LPM (8 US GPM) |
| Replaces | 504225 |
| Brand | Whale |
| Model | SS5012 |
| Voltage | 12V DC |
| Amps | 2.4A |
| Fuse | 5A |
| Approvals | ISO8849 Marine (Bilge Pump) Standards, ISO15083 Marine (Bilge Pumping Systems) Standards, Ignition Protected AYBC & USCG Standards, CE Certified 89/336/EEC EMC Compliant |
| Height | 54mm (2-1/8") |
| Width | 183mm (7-3/16") |
| Depth | 75mm (2-15/16") |
| Warranty | 3 Years |
