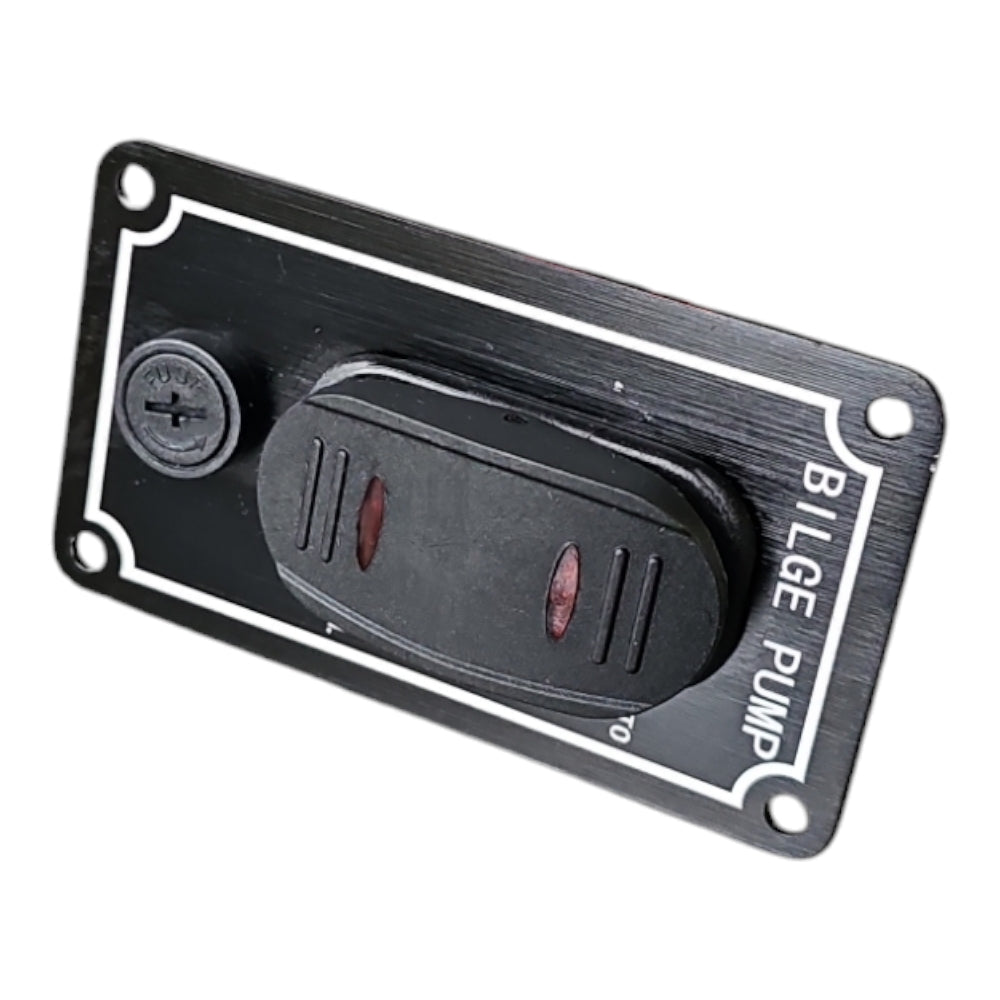

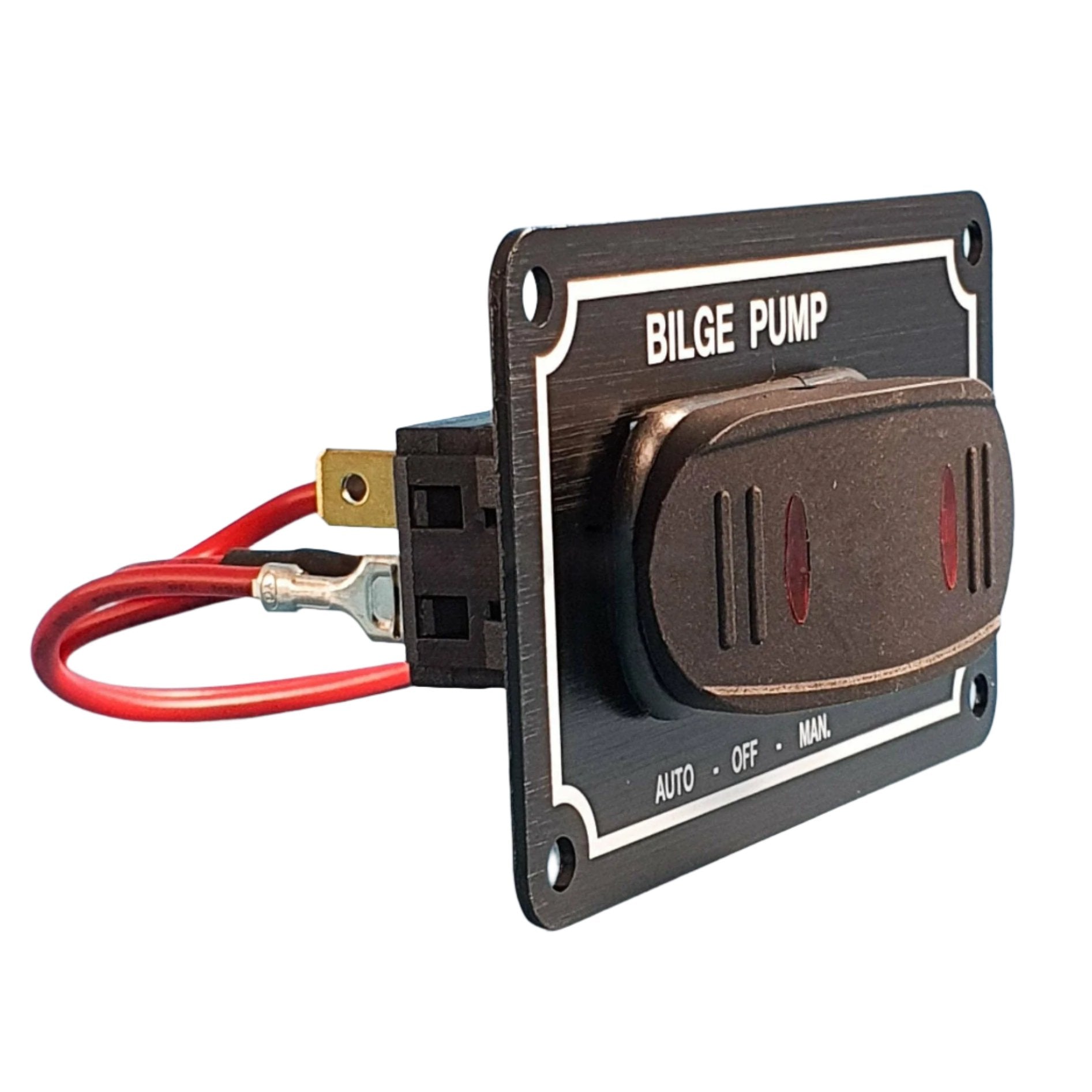

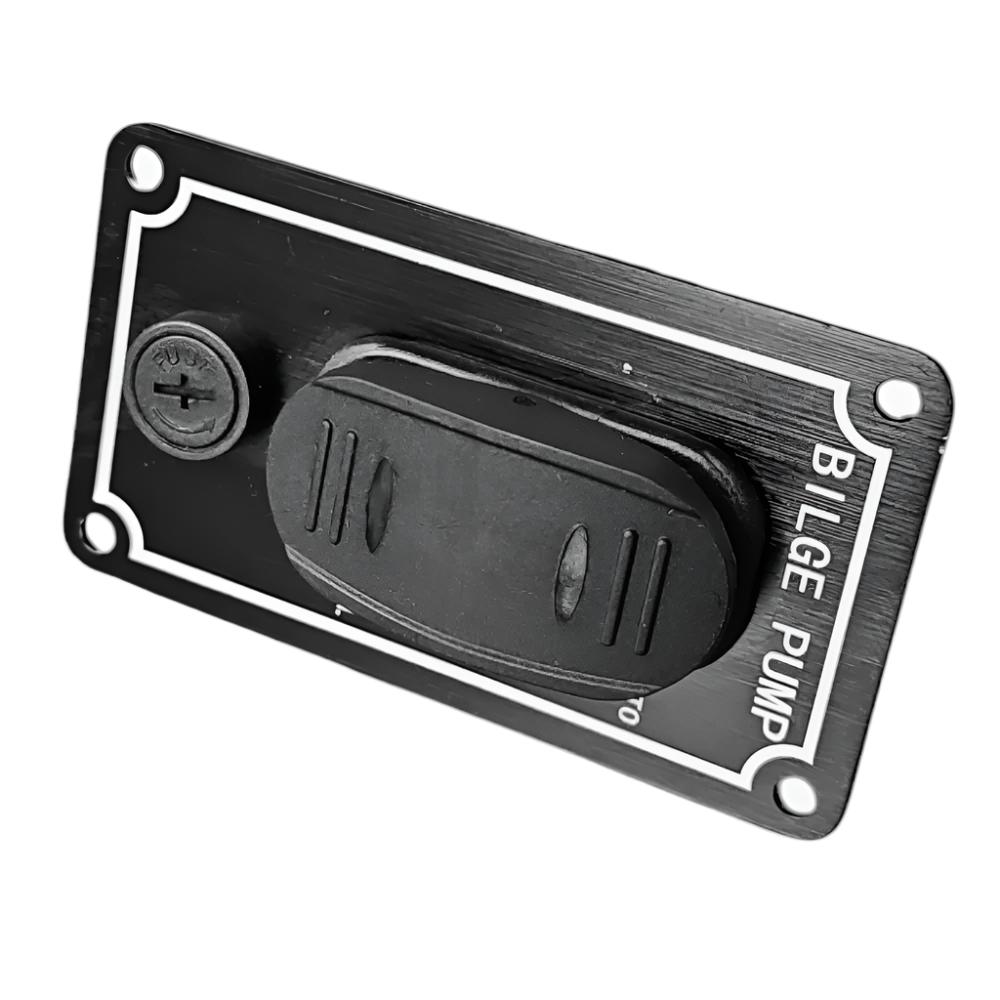

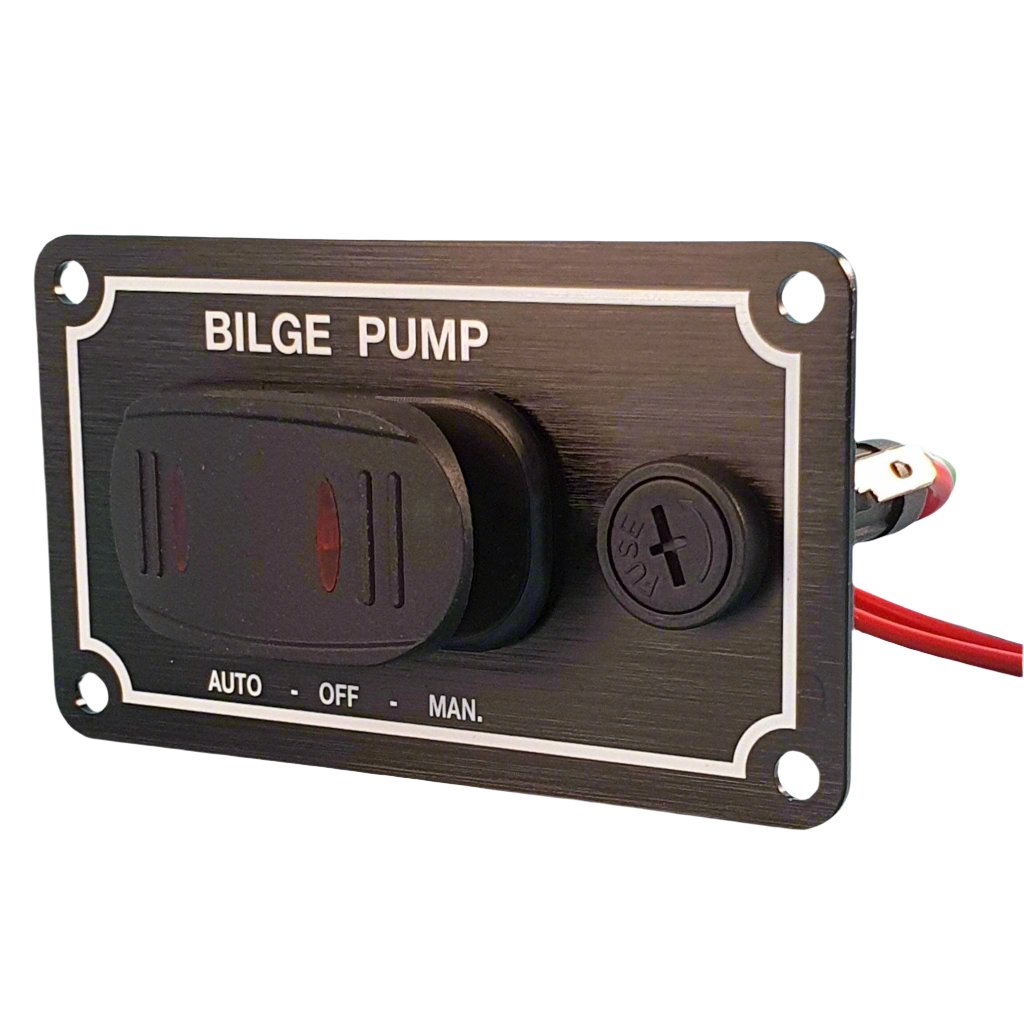

Marine Bilge Pump Switch H10299-H
The switch features two actions: pressing "Auto" engages a fixed position with no return, while pressing "Manual" activates a spring return.

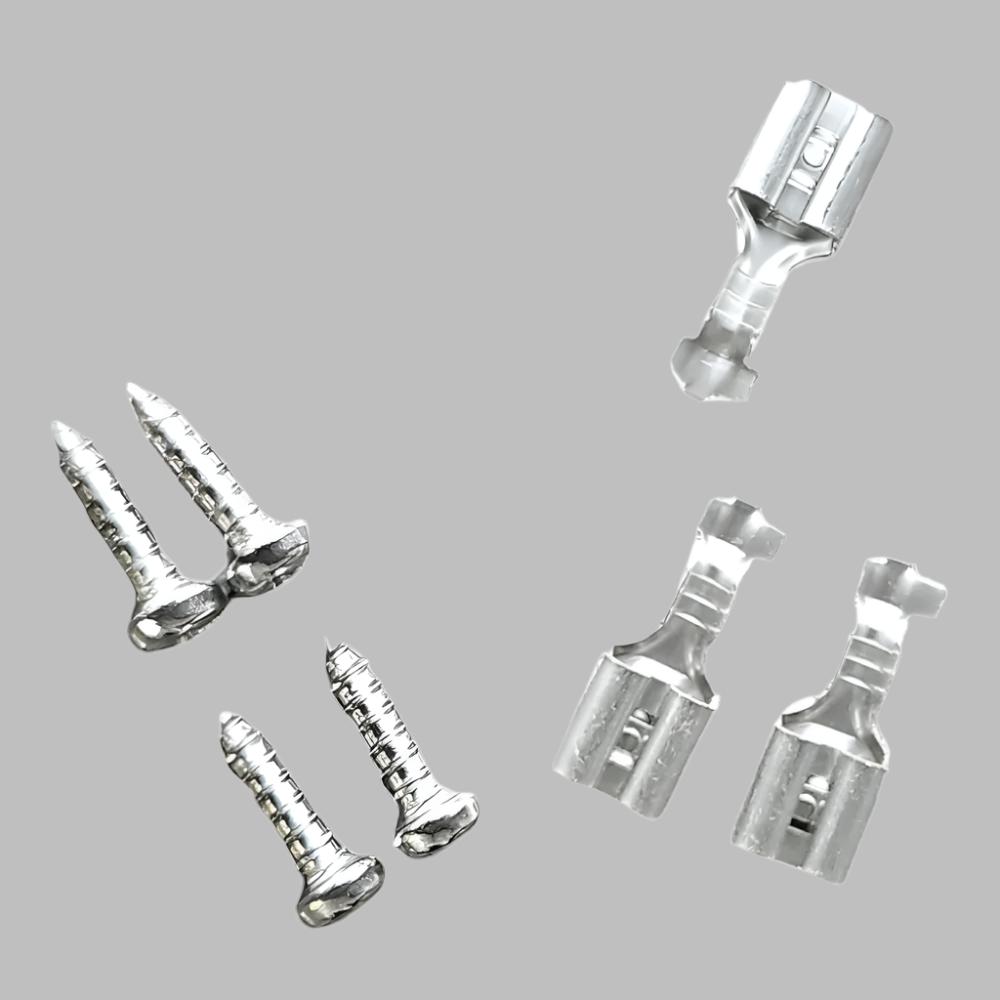

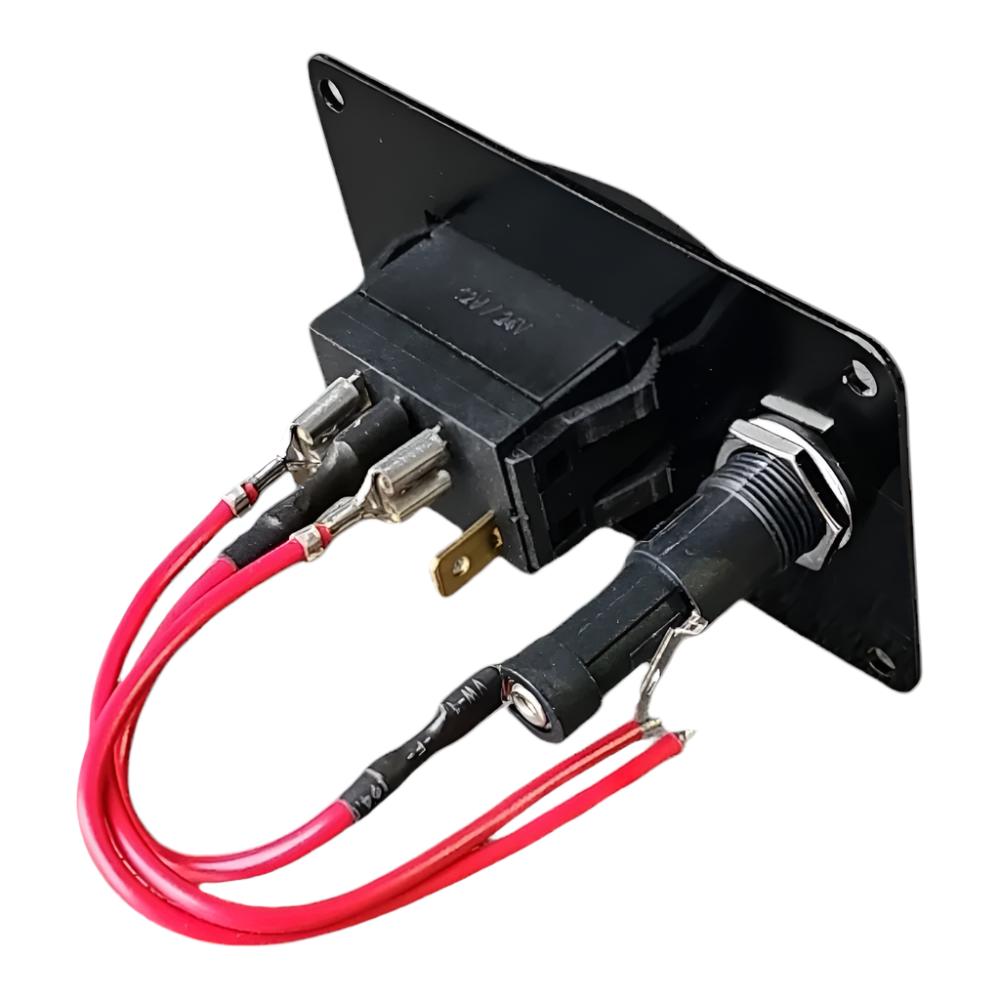

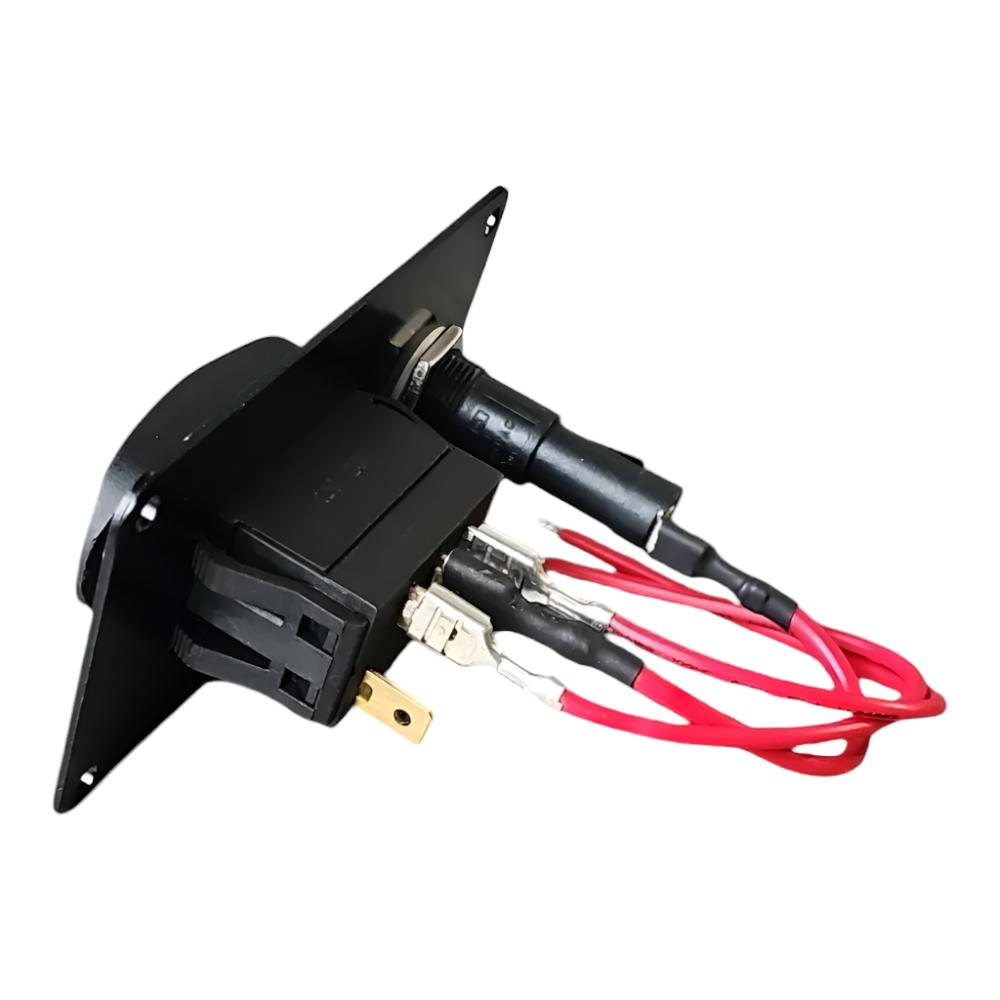

Dimensions and specifications include an overall length of 89mm, a mounting depth of 55mm, and an overall width of 50mm. The unit comes with a built-in fuse that is easy to change, is pre-wired for simple installation, has an illuminated rocker switch, and includes four holes for straightforward mounting (screws provided). The electrical current capacity is 12 Volts with a maximum of 15 Amps.
