Boat Battery Isolator Switch Perko

Save £19.40

Price:
Sale price£129.60 Regular price£149.00

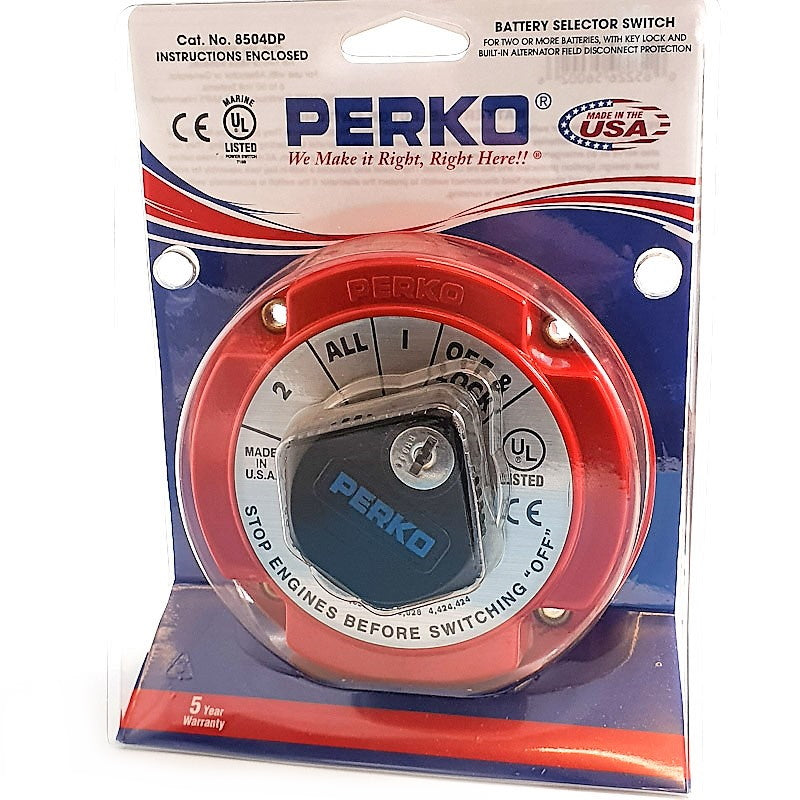

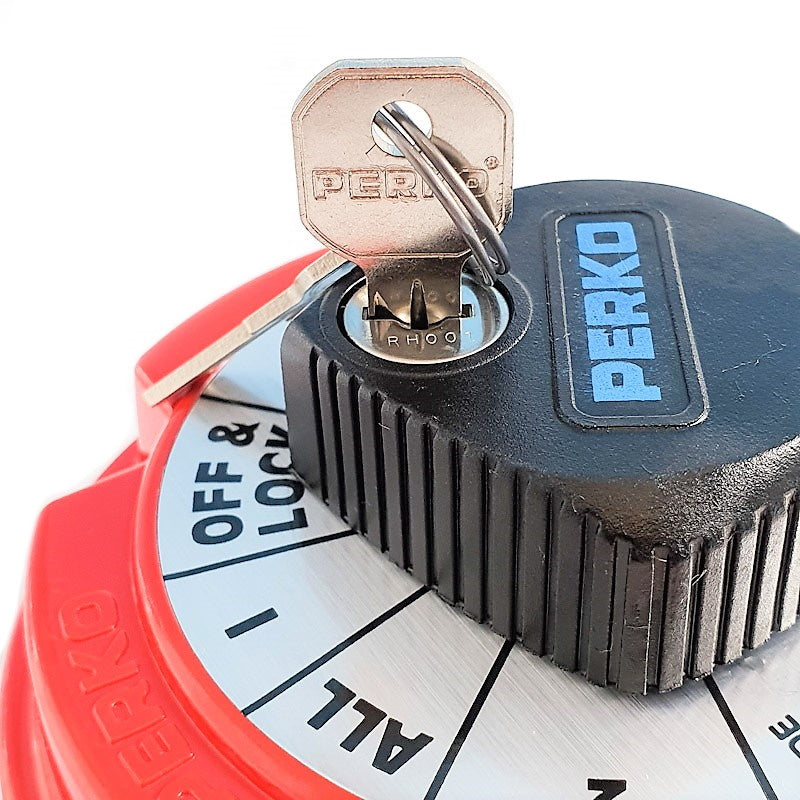

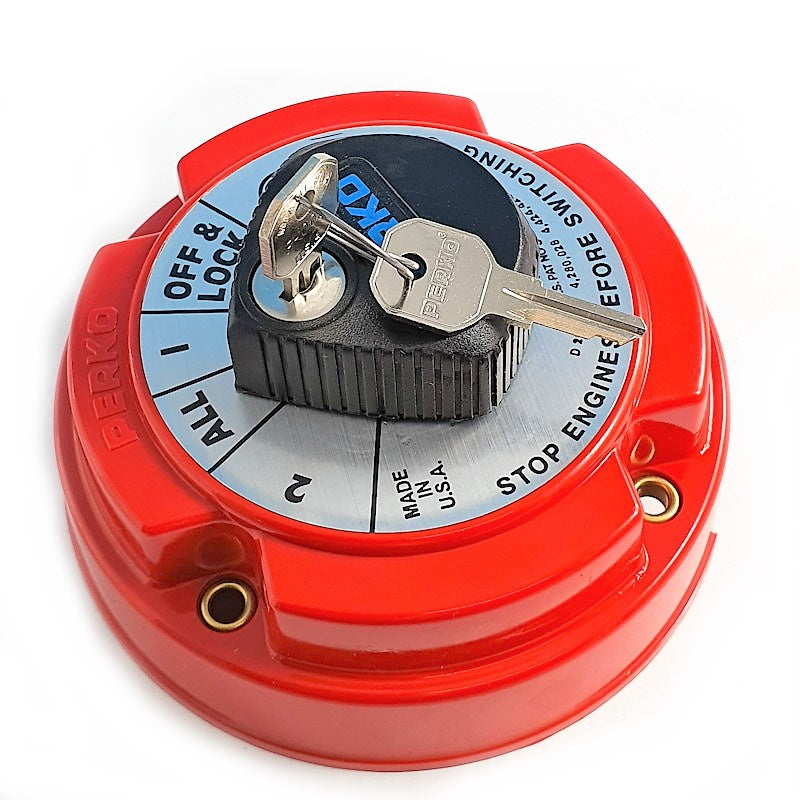

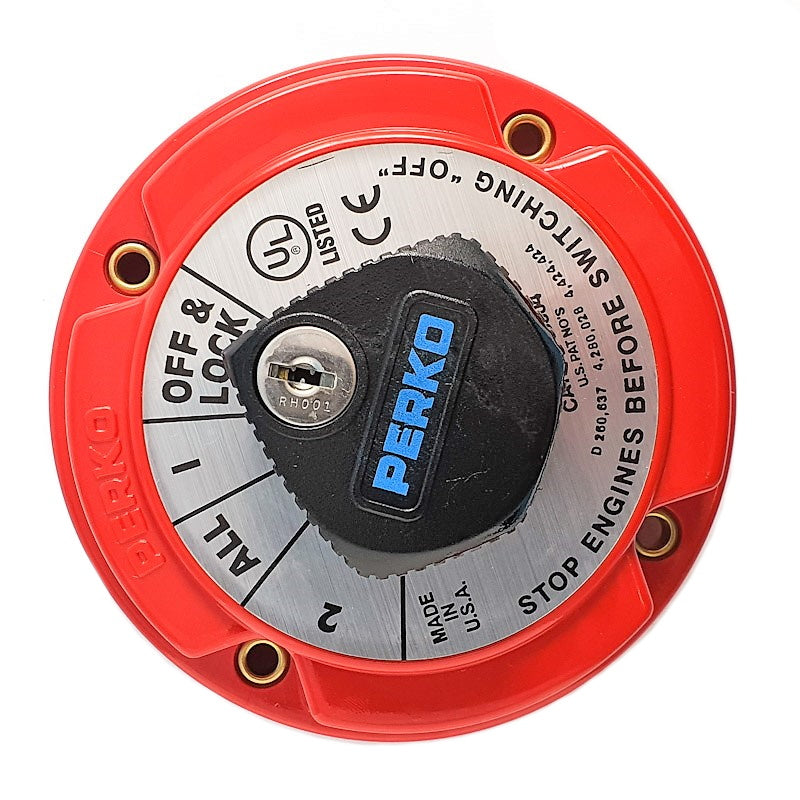

Boat Battery Isolator Switch Perko

The Perko 8504DP standard battery isolator selector switch allows the operator to select the use of battery 1, battery 2 or both batteries in the system from one single switch.

The Perko battery isolator change over switch rates 360 amps intermittent and 250 amps continuous, suitable for 12-volt, 24 volt or 32-volt marine electrical systems. The compact four-way selector switch features the following switch positions: Off & Lock / 1 / All / 2.

The alternator disconnect battery isolator switch offers extra protection when used with non-unitised alternators as it interrupts the field current to reduce the possibility of damage if turned 'Off' with the engine running.



Specification

Amps

Continuous: 250A, Intermittent: 360A

Approvals

UL Listed Std. 1107 & CE

Voltage

12V DC, 24V DC, 32V DC

Brand

Perko

Battery Isolator Switch Selector

4-Way

Alternator Field Disconnect

Yes

Contact Studs

8mm (5/16")

Diameter

134mm (5-1/4")

Ignition Protected

Yes

Key Lock

Yes

Model

8504

Depth

67mm (2-5/8")
