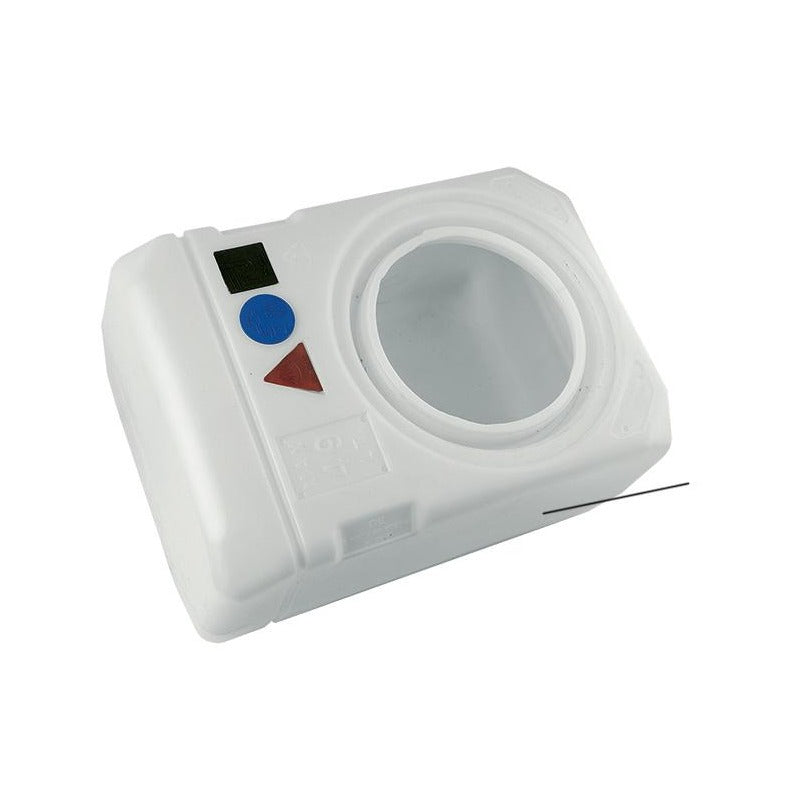

Genuine Marine Fuel Tanks Manufactured By DIABLO
DIABLO line of fixed tanks are made of recyclable HPDE material, consists of a full range of 10 models complying with International standards. DIABLO can be used for fuels such as petrol, diesel, ethanol, alternative fuels and organic vegetable oils.
The advantage of this tank is the "EASY SWITCH" hatch, can be purchased separately based on the use of the tank, and is manually interchangeable.
The hatch used for petrol is red in colour. It is secured and seated by rotation and locked in place with a locking pin. To clean the tank just lift the locking and remove the hatch by unscrewing it.
DIABLO Easy Switch Fuel Cap Hatch Sold Separately Part Number 197487
DIABLO Easy Switch Fresh Water Plate Sold Separately Part Number 197488
DIABLO Easy Switch Blind Plate, Without Connectors Part Number 197490
A= Length
B = Width
C = Height
Dimensions = mm
Capacity In Litres = Lt
| Code | 197477 | 197478 | 197479 | 197480 | 197481 | 197482 | 197483 | 197484 | 1907485 |
| Lt | 37 | 48 | 60 | 70 | 82 | 49 | 64 | 78 | 93 |
| A | 500 | 650 | 800 | 950 | 1100 | 500 | 650 | 800 | 950 |
| B | 360 | 360 | 360 | 360 | 360 | 360 | 360 | 360 | 360 |
| C | 230 | 230 | 230 | 230 | 230 | 305 | 305 | 305 | 305 |
