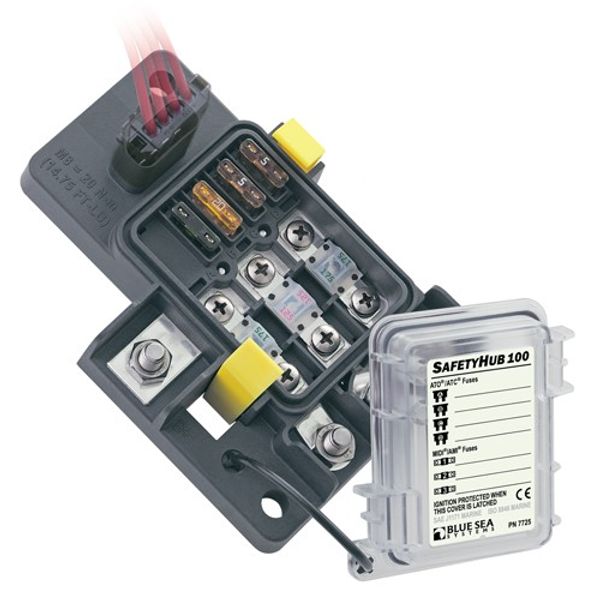

Fuse Block 100 Fuses Blue Sky
The SafetyHub product family is made up of ignition-protected fuse blocks capable of consolidating and protecting multiple 1A to 200A circuits. They are ignition protected for use on gasoline powered boats, and their reduced wiring connections make them easy to install. The SafetyHubs can be used for main or branch circuit protection. SafetyHubs are able to consolidate multiple fuses into a compact space and are highly suited for vessels ranging from ski boats to offshore fishing boats. Whether they are used by boatbuilders to decrease cost and weight in new boats, or by installers to upgrade an existing electrical system, they provide a safe and reliable approach to circuit protection.
| Amperage Max Operating (combined) | 280A |
| Operating Voltage | 12v DC |
| Minimum Cable Size | 4/0AWG |
| Recommended Terminal Ring | M8 |
| MIDI or AMI Fuse Block | |
| Imvo Amperage Max Operating (per block) | 240A |
| Fuse Amperages available | 32-200A |
| Minimum Cable Size | 2/0 AWG |
| ATO or ATC Fuse Block | |
| Imvo Amperage Max Operating (per block) | 50A |
| Imvo Amperage Max Operating (per circuit) | 30A |
| Fuse Amperages available | 1-20A |
