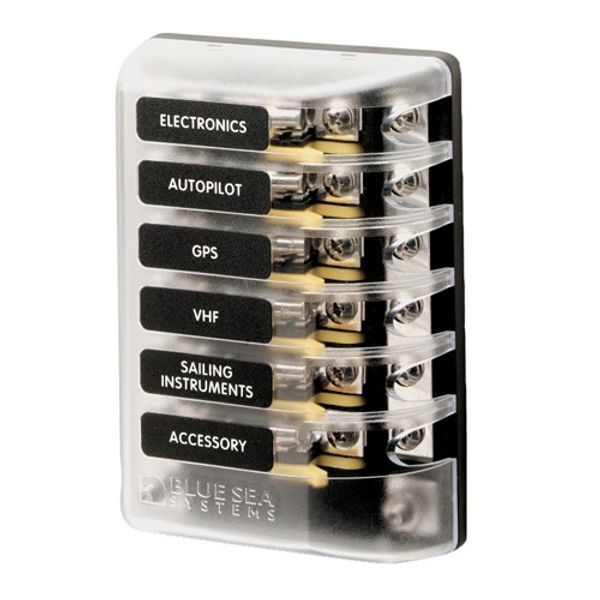

Fuse block for 6 essential electronical applications.
- Clear insulating cover with label recesses for large format labels
- Cover insulates all conductive parts, satisfying ABYC/USCG requirements & storing spare fuses
- Tin-plated copper buses & phosphor bronze fuse clips give full 30 Amp rating per circuit
- Uses AGC (fast acting) fuses
|
Maximum Voltage |
32V DC |
|
Max Amps per circuit |
30 Amps DC |
|
Max Amperage block |
100 Amps DC |
|
Fuse Type |
AGC |
|
Fuse Rating |
1/8 to 30A DC |
|
Screw Terminal |
#8-32 with lockwasher |
|
Maximum Voltage |
32V DC |
