ST Blade Fuse Blocks Screw Terminal Compact ATO®/ATC® fuse block consolidates branch circuits and eliminates the tangle of in-line fuses for electronics and other appliances.

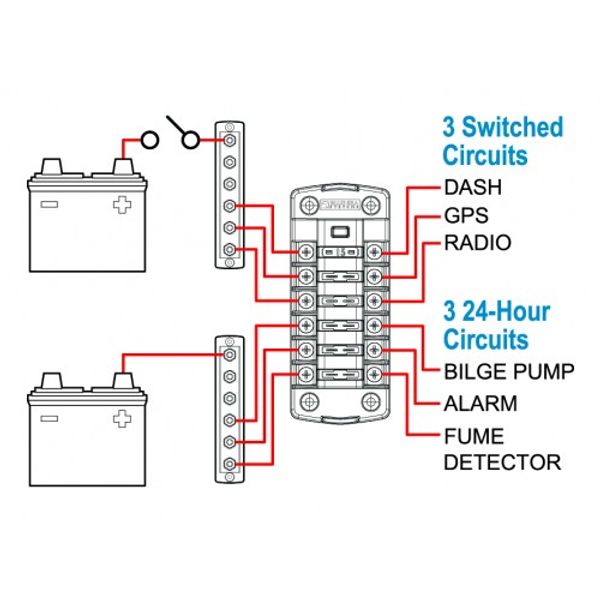

- Can be used for 24-hour circuits

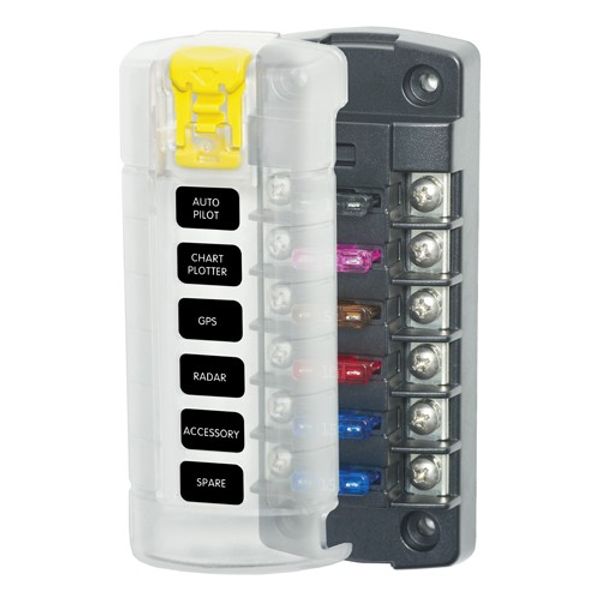

- Clear insulating cover with label recesses accepts Small Format Labels
- Cover satisfies ABYC/USCG insulation requirements
- Accepts ring terminals
- Easy to open, push button latch provides easy access to fuses
- Tin-plated copper buses and fuse clips
- Fuse Blocks with covers include 20 write-on circuit labels
- Fuses sold separately
- Specifications
- Voltage Max Operating: 32V DC
- Amperage Max Operating: 30A (per circuit)
- Fuse Type: ATO® or ATC® Fuses
- Screw Terminal: #8-32 Screws with
- Captive Star Lock washer
- Mounting: #8 Screw (M4)
