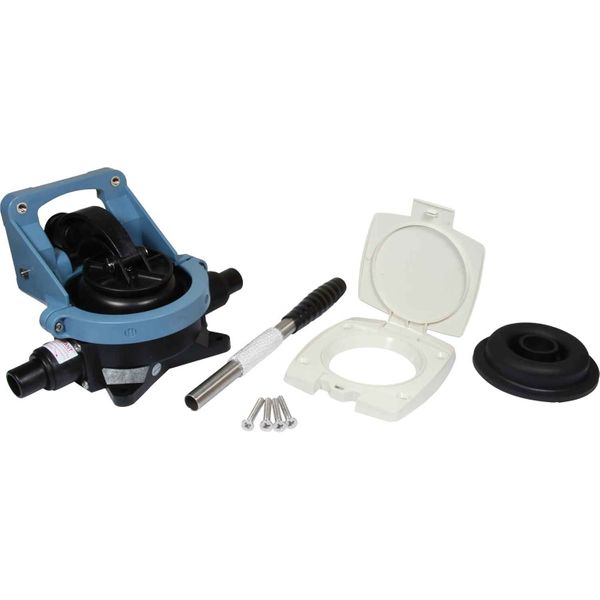

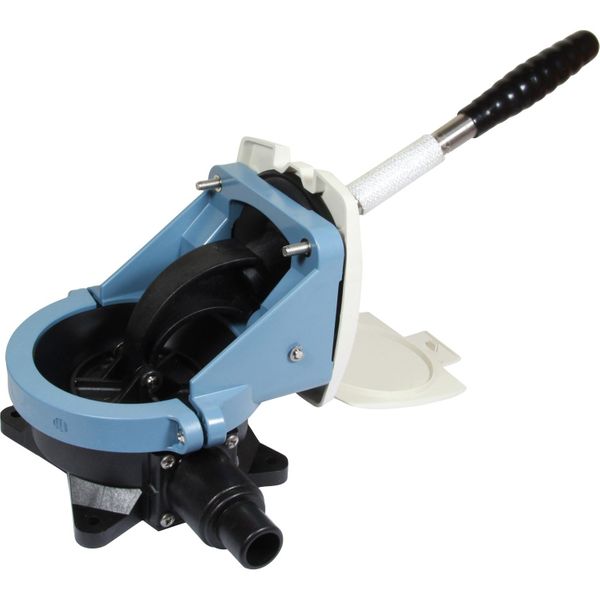

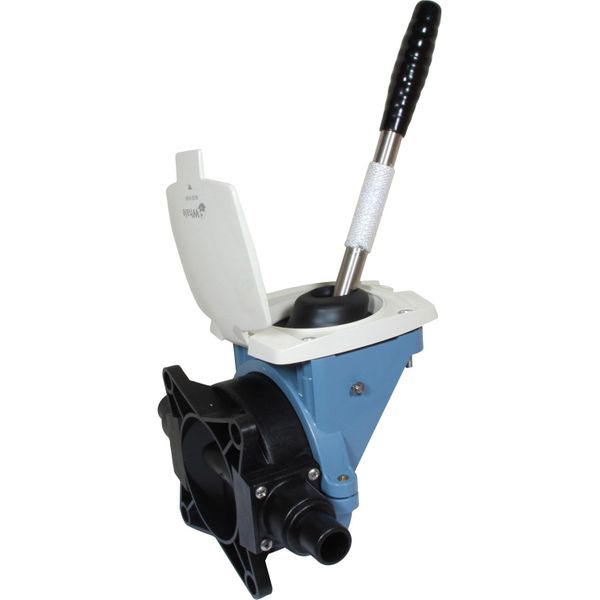

Gusher Urchin is the ideal pump for confined bilge spaces.
Manufactured by hand using high grade materials based on more than 60 years experience.
Features and Benefits:
- Ease of operation - smooth action
- Clamp ring easily removed for pump head rotation and quick maintenance
- Versatility of design - dual size nozzles for 25mm (1") or 38mm (1-1/2") hose to suit your plumbing
- Efficient performance - up to 55 litres (14.5 US gals) per minute
- Three different mounting options (deck, bulkhead and thru deck models)
Tip: It is important to ensure that a vented anti-syphon loop is incorporated in the system.
Accreditations:
- 25mm (1") Hose connection - suitable as a primary bilge pump on boats up to 12m (40ft) in accordance with ISO15083
- 38mm (1-1/2") Hose connection - suitable as a primary bilge pump on boats equal to or greater than 12m (40ft) in accordance with ISO15083
| Removable Handle | Yes |
| Country of Origin | United Kingdom |
| Mounting | Through Deck Mount |
| Maximum Suction Lift | 4 Meters (13.5 Feet) |
| Maximum Recommended Head | 3 Meters (10 Feet) |
| Flow Rate at 70 Strokes per Minute | 55 LPM (14.5 US GPM) |
| Flow Rate at 45 Strokes per Minute | 37.5 LPM (9.9 US GPM) |
| Maximum Pump Head | 2.3 to 4.27 Metres |
| Mounting [Filter] | Through Deck |
| Brand | Whale |
| Series | Urchin |
| Model | BP9013 |
| Application | Bilge or Waste Water |
| Approvals | Suitable as a primary bilge pump on boats equal to or greater than 12m (40ft) in accordance with ISO150831 |
| Height | Pump Body: 139mm |
| Width | Body: 139mm |
| Length | 348mm |
| Diameter | Handle Shaft: 16mm |
| Warranty | 5 Years |
