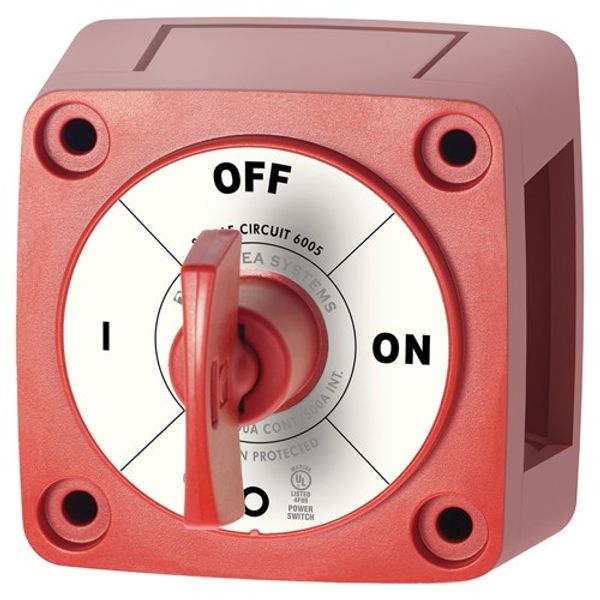

300 Ampere continuous rating for outboards and small gasoline or diesel engines.
- Tin-plated copper studs for maximum conductivity and corrosion resistance
- Studs accept 3/8" (M10) ring terminals
- One-piece terminal stud design never loosens over time
- 7/8" (22.22mm) stud length accepts multiple cable terminals
- Isolating cover with three snap-in side pieces protects rear contacts and allows wire access in any direction

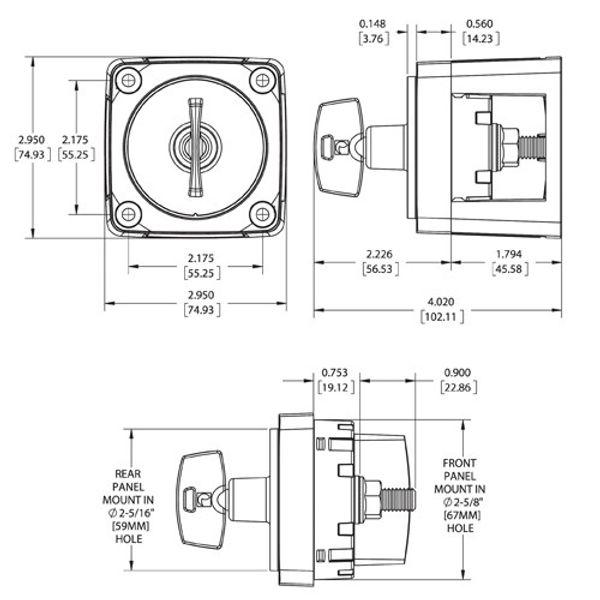

- Case design allows surface, rear, or front panel mounting options
- Regulatory
- CE marked, ISO 8846
- UL Listed - UL 1107 electric power switches
- Meets ABYC requirements
- Meets UL1500 and SAE J1171 external ignition protection requirements
- IP66 protects against powerful water jets
- Paralleling Link BUS 8-29159
