Sierra Marine water pump kit 18-3396-1 with impeller will replace the following repair kits:
Yamaha
- 61A-W0078-A2-00
- 61A-W0078-A3-00
- 61A-W0078-A4-00
- 64L-W0078-00-00
- 65L-W0078-A0-00
Sierra
- 18-3396
Mercury
- 888687A1
Mallory
- 9-48618
Sierra
- 18-3396-1

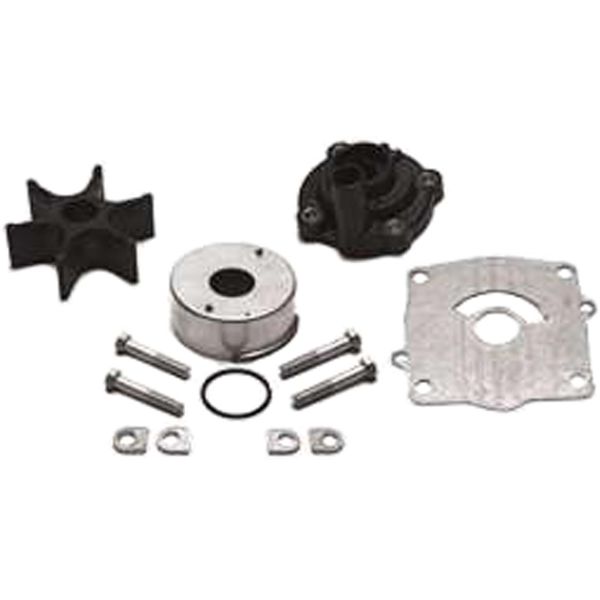

Water pump service kit contains:
- Impeller 18-3071 (6E5-44352-01-00)
- Water Pump Gasket 18-0244 (6E5-44315-A0-00)
- 4 x Bolt 18-0256 (97095-08045-00)
- Water Pump Housing 18-3173-1 (6E5-44311-00-00)
- Impeller Key 18-3302 (90280-04M05-00)
- Insert Cup 18-3333 (61A-44322-00-00)
- Wear Plate 18-3345 (6G5-44323-01-00)
- O-Ring (6G8) 18-7483 (93210-37M67-00)
- O-Ring 18-7485 (93210-86M38-00)
- 2 x Dowel Pin (93606-12019-00)
- 4 x Bolt Washer (90209-08M02-00)
The water pump repair kit is suitable for the following engines:
Yamaha
- 150hp (1997-2019) 2 & 4-stroke 4 & 6-cylinders
- 175hp (1997-2019) 2 & 4-stroke 4 & 6-cylinders
- 200hp (1997-2019) 2 & 4-stroke 4 & 6-cylinders
- 225hp (1997-2019) 2 & 4-stroke 6-cylinders
- 250hp (1997-2019) 2 & 4-stroke 6-cylinders
- 300hp (2004-2019) 2-stroke 6-cylinders
