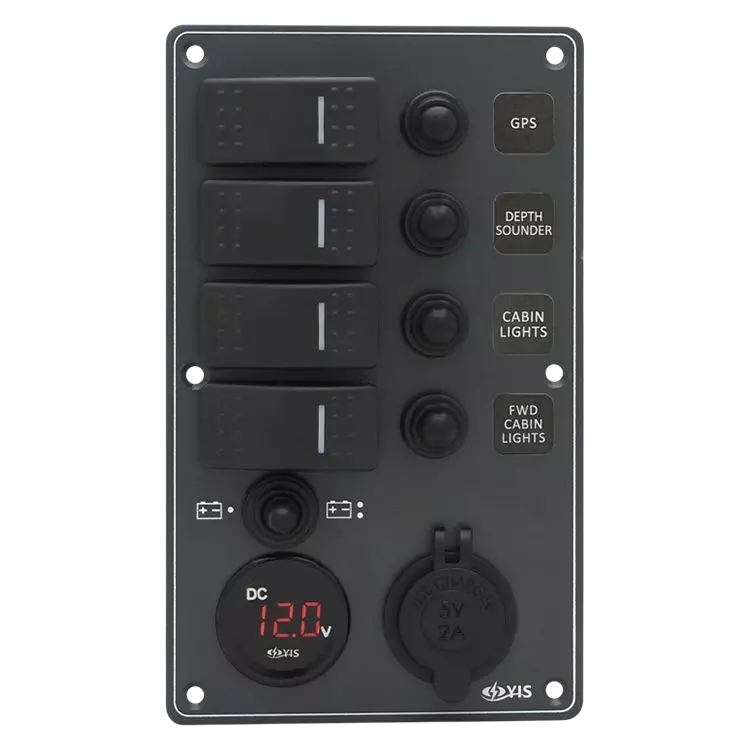

Aluminum Switch Panel with Battery Gauge & USB Charger Socket
Coming with the IP66 C-7 sealed rocker Switches, these switch panels can withstand even severer weather conditions than the C-6 Water-resistant Switch Panel. SP32xx series are the only aluminum switch panels in the market with backlight modules for labels.
Water-resistant Switch Panel with Battery Gauge Socket and USB Charger (Dark Gray)
Features:
- New modern and compact panel design (15% smaller than SP30xx series)

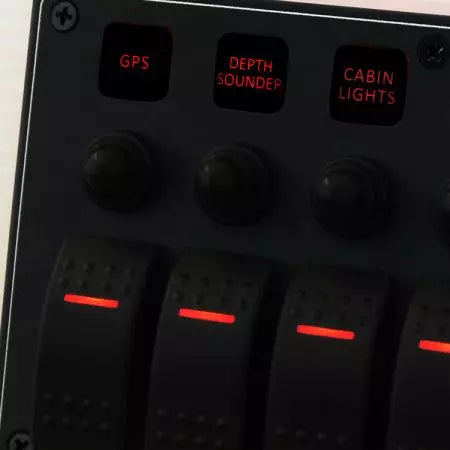

- Backlight modules for labels, allowing easy operation in darkness

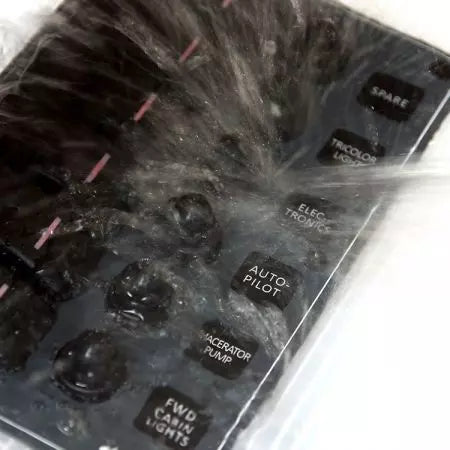

- IP66–protect against strong water jets
- Push-reset circuit breakers with rubber boots
- Illuminated (LED) C-7 rocker switches with dual voltage rating (12V / 24V)
- Watertight mounting gasket included
- Square shaped label stickers (30pcs) allow vertical or horizontal installation
-
1 Battery Gauge (Voltage Meter) & 1 USB Charger Socket
Specification:
- Faceplate | 0.1"(2.54mm) Coated Aluminum Alloy
- Circuit Protection | Circuit Breakers
- Switch Ratings | 20A @ DC 12V / 10A @ DC 24V (Dual Voltage)
-
Panel Rating | Max Cumulative Amp: 45A (Max possible Amperage for each panel is determined by the lower of total switches ratings or the Max Cumulative Amperage listed above)
Dimensions:
- Product Dimensions (W x H) | 114 x 191mm
- Mounting Depth | 75mm
-
Panel Cut-out (W x L) | 96 x 166mm
