- SKU: SP3314P

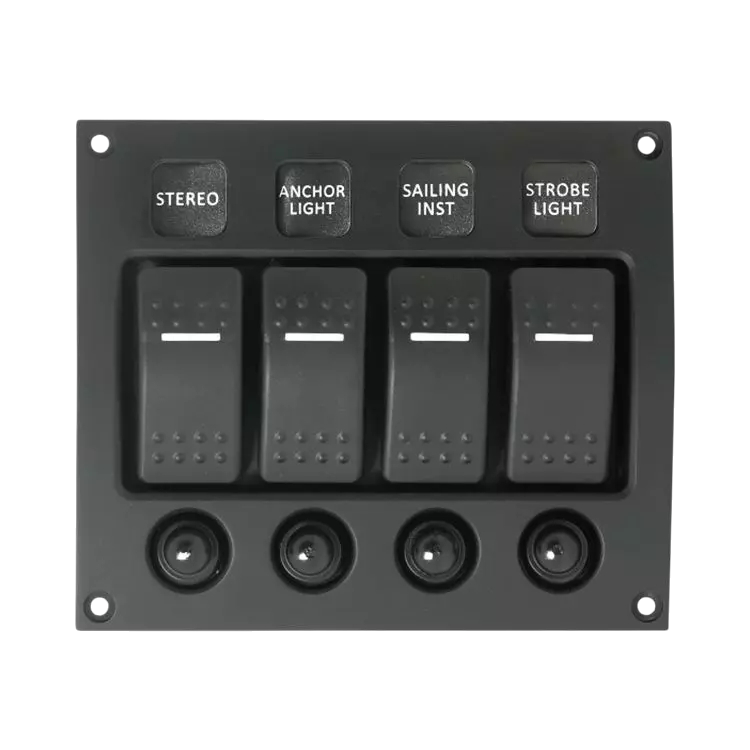

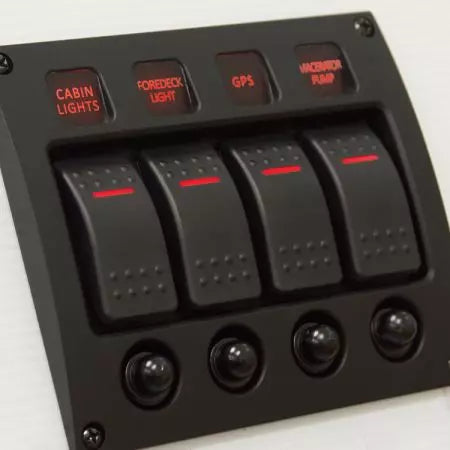

YIS Water-resistant LED Switch Panel - SP3314P
Regular price
£47.95
Regular price
£58.95
Sale price
£47.95
Unit price
per
Taxes included.
4P Curved Water-resistant LED Switch Panel with Circuit Breakers
Coming with the IP66 C-7 sealed rocker Switches, these switch panels are one of our most weather-proof switch panel series. The modular mini panels allow consumers to build switch panels with their own customized features.
With modern curved faceplate design and new backlighted label features, these panels are stylish, high performance switch panels with complete features.
Features:
- New modern curved and compact panel design (15% smaller than SP30xx series)
- Mini modular panels allow free combinations at consumers' side
- Backlight modules for labels, allowing easy operation in darkness

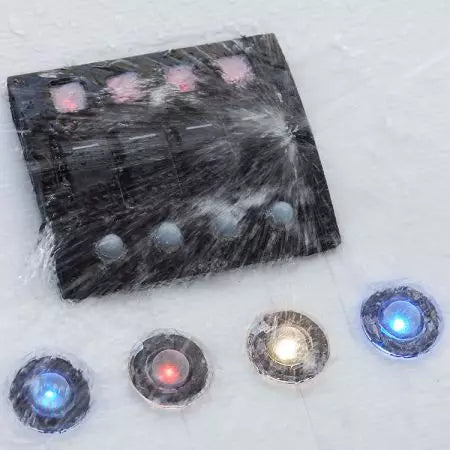

- IP66–protect against strong water jets
- Push-reset circuit breakers with rubber boots
- Illuminated (LED) C-7 rocker switches with dual voltage rating (12V / 24V)
- Watertight mounting gasket included
- Square shaped label stickers (30pcs) allow vertical or horizontal installation
Specification:
- Faceplate | Curved shaped plastic (ASA)
- Circuit Protection | Circuit Breakers
- Switch Ratings | 20A @ DC 12V / 10A @ DC 24V (Dual Voltage)
- Panel Rating | Maximum Cumulative Amp: 45A(Max possible Amperage for each panel is determined by the lower of total switches ratings or the Max Cumulative Amperage listed above)
Dimensions:
- Product Dimensions (W x H) | 114 x 133mm
- Mounting Depth | 75mm
- Panel Cut-out (W x L) | 101 x 120mm
