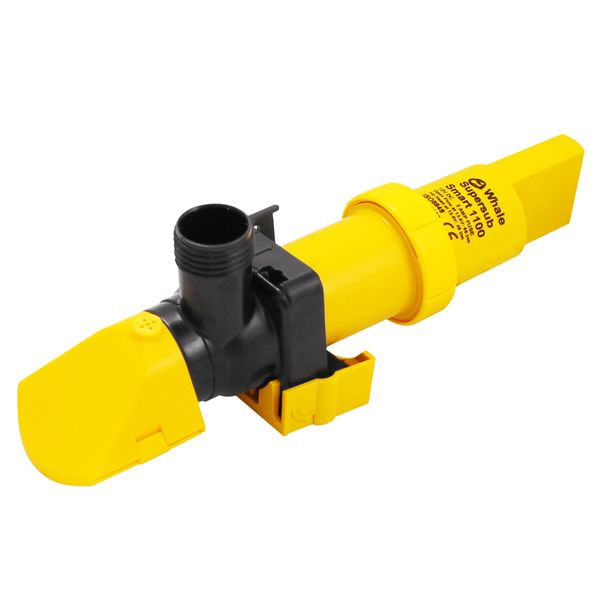

Bilge Pump Manufactured by Whale 1100 GPH 12 V
Low profile automatic bilge pumps sense bilge water level and switch on and off automatically.
Fit deep down in confined bilge areas, under engines or cockpit floors.
Features and Benefits
- Fits deep in the bilge where other pumps can't
- No separate bilge switch required
- Automatically controlled patented electric field sensor detects water level
- Waterproof electronics- protected against water ingress
- Quick and easy installation - long wires, strainer and outlet rotate to suit your bilge area
- Unaffected by wave motion
- Environmentally friendly - mercury free
- Includes manual override facility
- Solid state switching - no moving parts
- Drains to down 9mm (1/3")
Approvals and Standards
- Conforms to ISO 8849 and ISO 15083
- Ignition protected per ABYC and USCG standards
- NMMA type accepted
- CE certified
| Maximum Recommended Head | 3 Meters (9.8 Feet) |
| Flow Rate 1m | 2820 LPH (750 US GPH) / 47 LPM (12 US GPM) |
| Flow Rate at Zero Head | 3960 LPH (1050 US GPH) / 66 LPM (17 US GPM) |
| Maximum Pump Head | 2.3 to 4.27 Metres |
| Country of Origin | United Kingdom |
| Automatic Bilge Pumps | Yes |
| Brand | Whale |
| Model | SS1212, SS1212B |
| Voltage | 12V DC |
| Amps | 4.3A |
| Fuse | 7A |
| Approvals | ISO8849 marine (bilge pump) standards, ISO15083 marine (bilge pumping systems) standards, Ignition Protected AYBC & USCG standards, CE Certified 89/336/EEC EMC compliant |
| Height | 54mm (2-1/8") |
| Width | 240mm (9-1/2") |
| Depth | 75mm (2-15/16") |
| Length | Cable: 1 Meter (3.2 feet) |
| Warranty | 1 Year |
