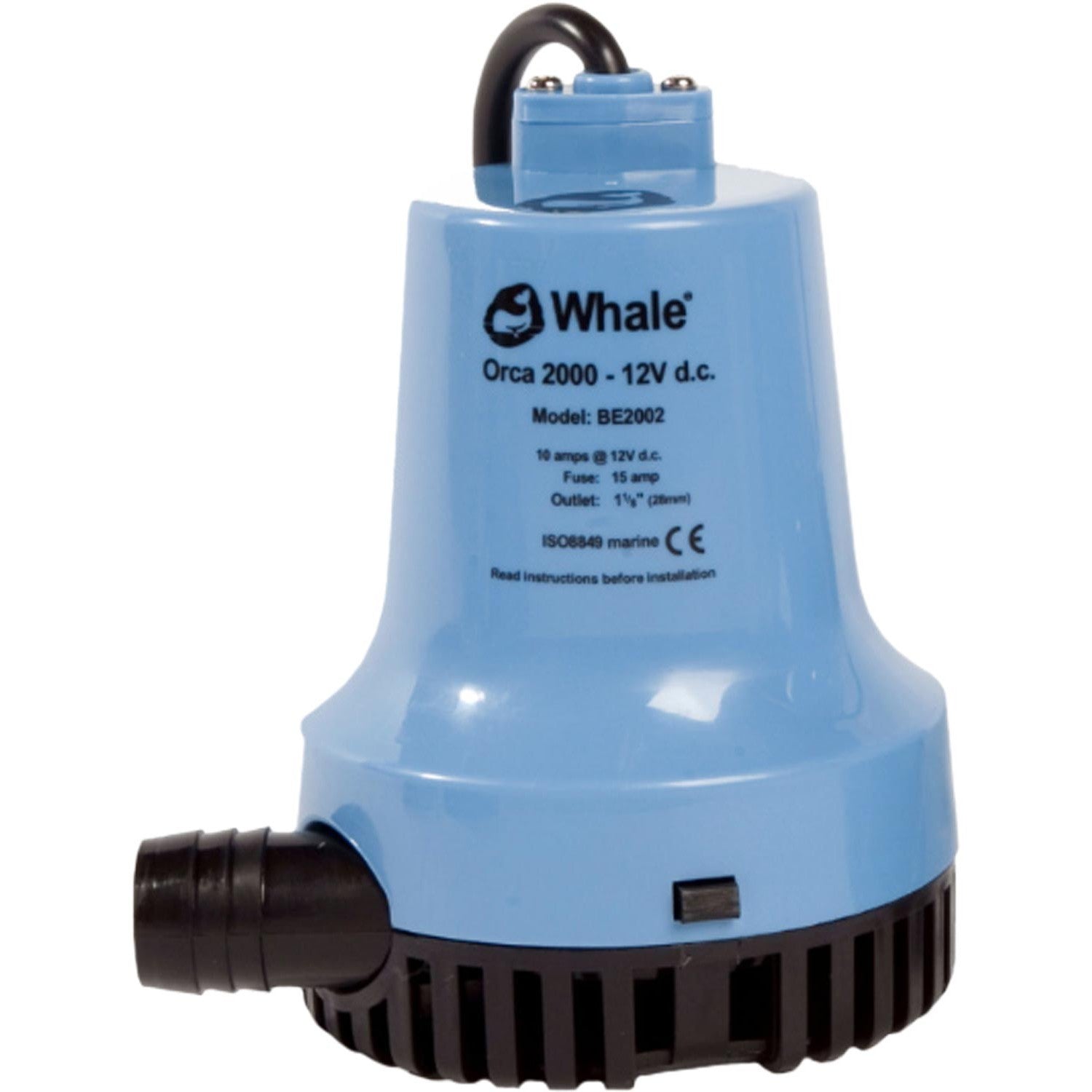

Orca - Compact and Powerful Electric Bilge Pump Range designed for use with a separate electric bilge switch Whales widest range of electric submersible bilge pumps ever. Now featuring NEW high capacity models.
Efficient design with large footprint to ensure maximum surface area exposure to bilge water, now available in higher capacity 2000 and 3000 models.
Features and Benefits
- High performance
- Simple installation - multiple wire locations
- Low amp draw means long battery life
- Easy maintenance - access to motor cartridge and filter area
- Compact design
- Lowest drain 8mm (1/3")
- Available in a range of 5 flow capacities - 500, 950, 1300, 2000 and 3000 US GPH
- 2000 and 3000 models self clearing - prevent cavitation
Accreditations
- Meets ISO8849 marine standard
- CE certified
| Wire Size | 1.5mm² (16 AWG) |
| Automatic Bilge Pumps | No |
| Flow Rate 1m | 6245 LPH (1650 US GPH) / 104 LPM (27.5 US GPM) |
| Maximum Recommended Head | 4 Meters (13 Feet) |
| Flow Rate at Zero Head | 7570 LPH (2000 US GPH) / 126 LPM (33.3 US GPM) |
| Outlet | For 28mm (1-1/8") ID Hose |
| Maximum Pump Head | 2.3 to 4.27 Metres |
| Brand | Whale |
| Series | Orca |
| Model | BE2002 |
| Voltage | 12V DC |
| Amps | 10A |
| Fuse | 15A |
| Approvals | Meets ISO0849 Standard, CE Certified |

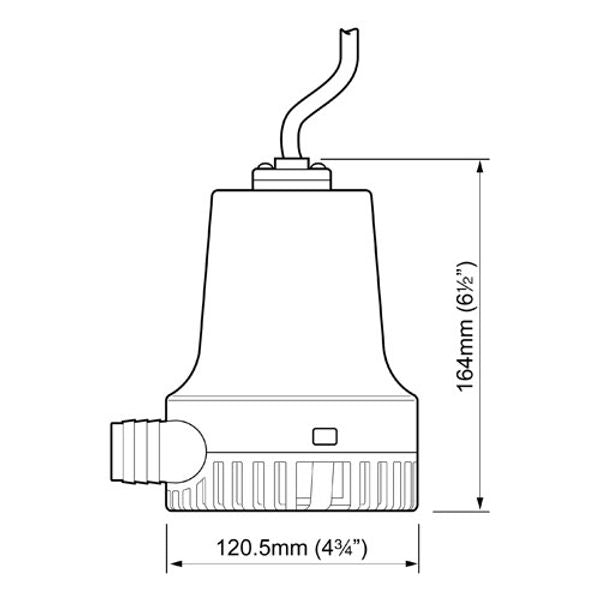

| Height | 165mm (6.5") |
| Width | 144mm (5.7") |
| Depth | 120.5mm (4.74") |
| Warranty | 3 Years |
